Availability: In Stock

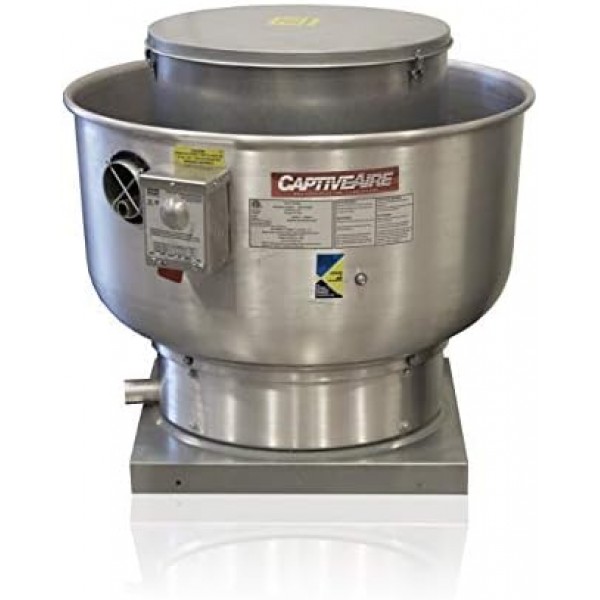

Restaurant Canopy Hood Grease Rated Exhaust Fan- High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control- 24 3/4" Base, 0.75 HP 115 Volt Single Phase Motor, 1500-2200 CFM (DU85HFA)
Product Code: DU85HFA
$1.00

Available Options

Ask About This Product
Brand CAPTIVE-AIRE
Color Aluminum
Electric fan design Exhaust Fan
Style Custom
Room Type Kitchen
Special Feature Bladeless
Blade Length 4 Inches
Voltage 115 Volts
Item Weight 103 Pounds
See more

About this item

  • High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 15-3/4" wheel.
  • 24 3/4" x 24 3/4" Fan Base Dimension/ 103 LBs/ 1500-2200 CFM/ 0.75 HP 115 volt Single Phase Motor.
  • Rated for restaurant grease and general ventilation applications. UL705, UL762, & ULC-S645 Rated. Included with the exhaust fan is a restaurant duty grease cup, down spout, and a hinge kit for exhaust fan roof curbs.

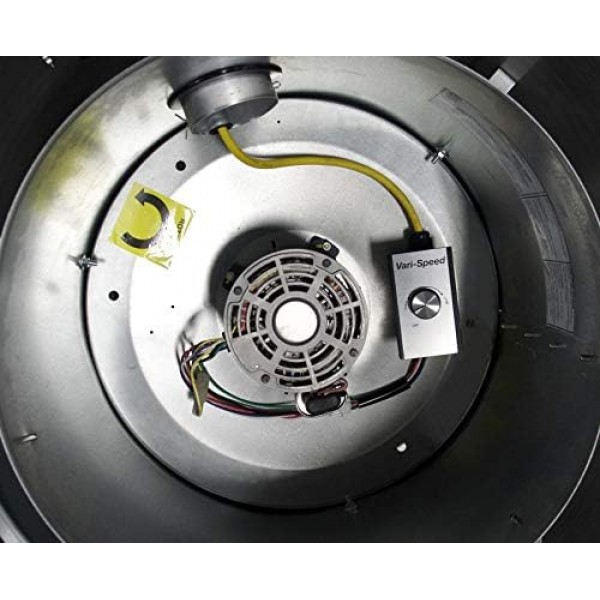

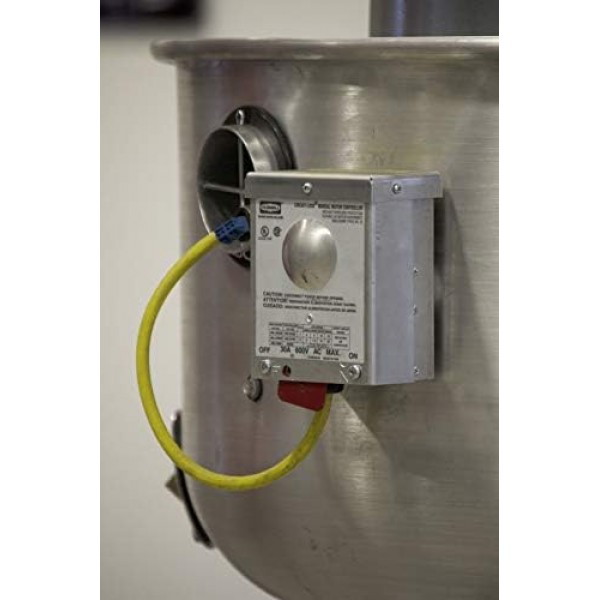

  • Construction features include a heavy gauge aluminum housing, a backward inclined, non-overloading wheel, a safety disconnect switch, a variable speed control, vibration isolators, and quick release latches for motor compartment access.
  • As all fans are custom built, no returns or exchanges are accepted.

Product information


Product Description

Captive Aire Captive Air Captive-Air Captive-Aire Systems hood filters high efficiency

CaptiveAire's centrifugal fans safely and efficiently exhaust air from the building.

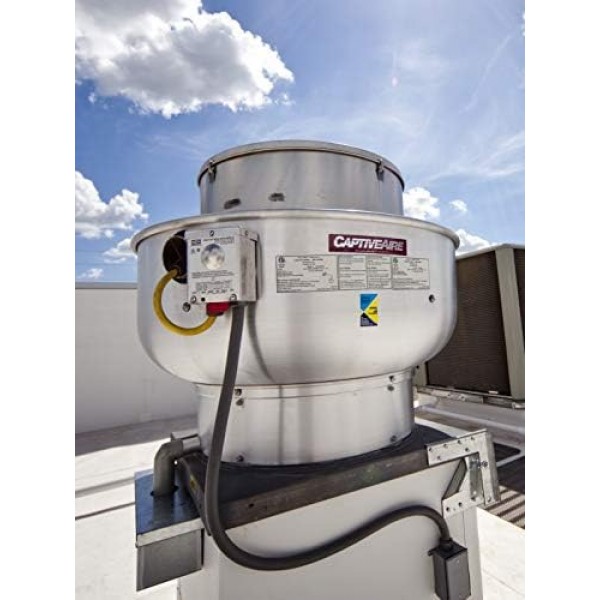

Centrifugal roof exhausters are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building.

All models shall be ETL Listed and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113. Models 12 thru 85 are ETL Listed and comply with UL762 and ULC-S645 Standards. Fan shall bear the AMCA certified ratings seal for sound and air performance.

Exhaust fan Restaurant fan upblast commercial kitchen Exhaust fan fans restaurant commercial kitchen upblast downblast captive aire
Categories: Captiveaire Systems
