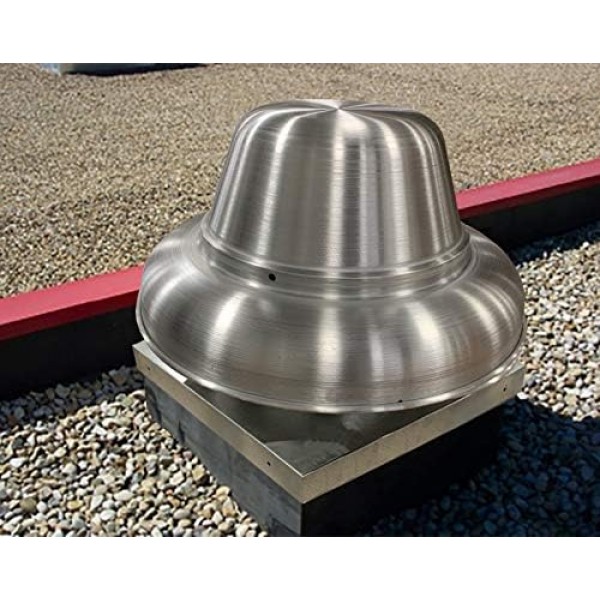

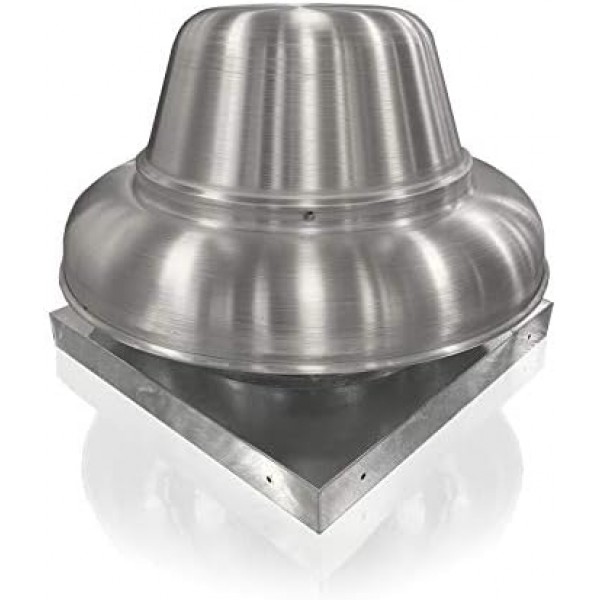

CAPTIVE-AIRE Direct Drive Centrifugal Downblast Roof Mounted Exhaust Fan with Speed Control- 19" Fan Base, 0.060 HP 115 Volt Single Phase Motor (DR-10HFA)
Product Code: DR-10HFA

Available Options

Ask About This Product
Color Aluminum
Electric fan design Exhaust Fan
Power Source Corded Electric
Style Industrial
Product Dimensions 20.75"D x 20.75"W x 14.5"H
Room Type Office
Air Flow Capacity 300 Cubic Feet Per Minute
Blade Length 19 Inches
See more

About this item

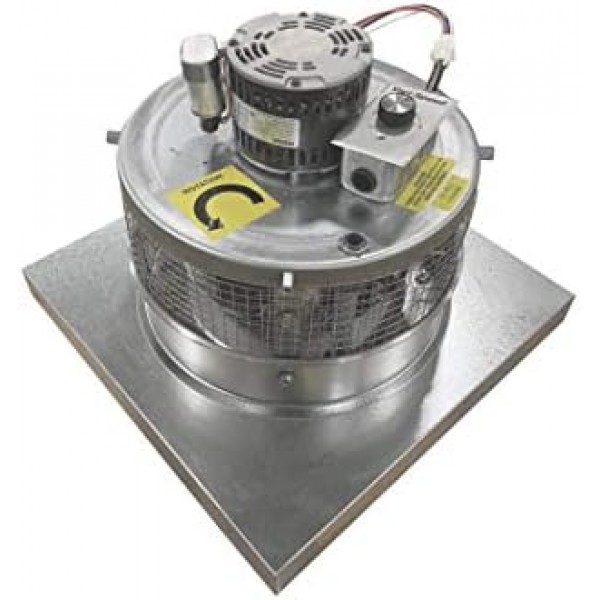

  • High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control, birdscreen, disconnect switch and 9" wheel
  • 19" x 19" Fan Base Dimension/ 39 LBs/ 300 CFM/ 0.060 HP 115 volt Single Phase Motor
  • Ideal for installation in hospitals, schools, hotels, auditoriums, office buildings and light industrial areas.
  • Designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life
  • As all fans are custom built, no returns or exchanges are accepted.
See more product details

Product Description

Captive Aire Captive Air Captive-Air Captive-Aire Systems hood filters high efficiency

CaptiveAire's centrifugal fans safely and efficiently exhaust air from the building.

Centrifugal roof exhausters are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building.

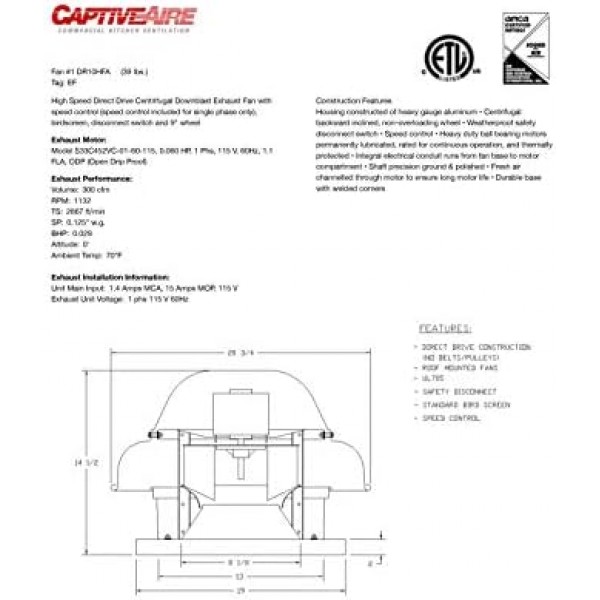

All models shall be ETL Listed and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113. Models 12 thru 85 are ETL Listed and comply with UL762 and ULC-S645 Standards. Fan shall bear the AMCA certified ratings seal for sound and air performance.

Exhaust fan Restaurant fan upblast commercial kitchen Exhaust fan fans restaurant commercial kitchen upblast downblast captive aire
