Availability: In Stock
Direct Drive Square Inline Dishwasher Exhaust Fan- (Totally Enclosed Air Over Electronically Commutated Motor) 1.0 HP 115 Volt Single Phase Motor, 900-1800 CFM (SIF13DD-SS)
Product Code: B07QSCK7FW

Available Options

Ask About This Product

About this item

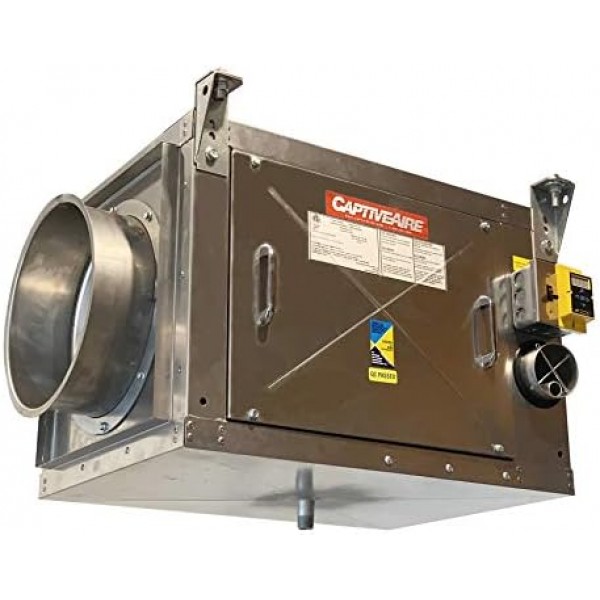

  • Direct Drive Square Inline Exhaust Fan - Stainless Steel with 13.75" Centrifugal Wheel.
  • Exhaust Motor: 1.000 HP, 1 Phs, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
  • Stainless steel housing construction is ideal for commercial dishwasher applications or general ventilation. (UL705)

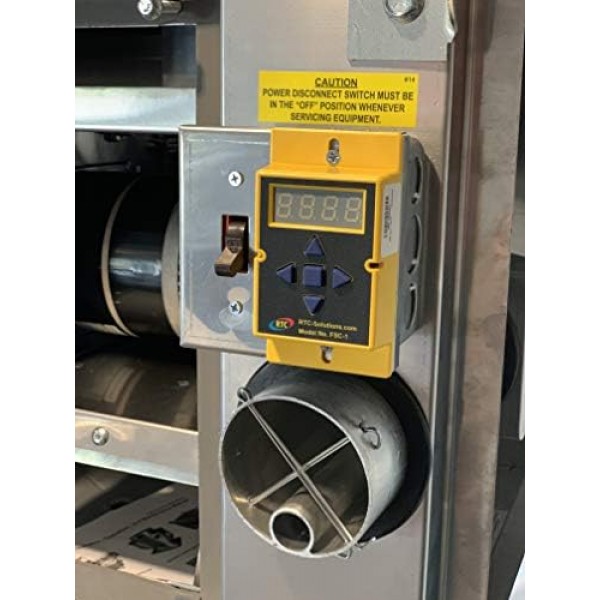

  • Disconnect switch, mounting brackets, fan speed control, and round inlet and outlet connections included. The fan can accept square or round ductwork connections.
  • As all fans are custom built, no returns or exchanges are accepted.

Product information

Product Description

Captive Aire Captive Air Captive-Air Captive-Aire Systems hood filters high efficiency

CaptiveAire's direct drive inline fans safely and efficiently exhaust air from the building.

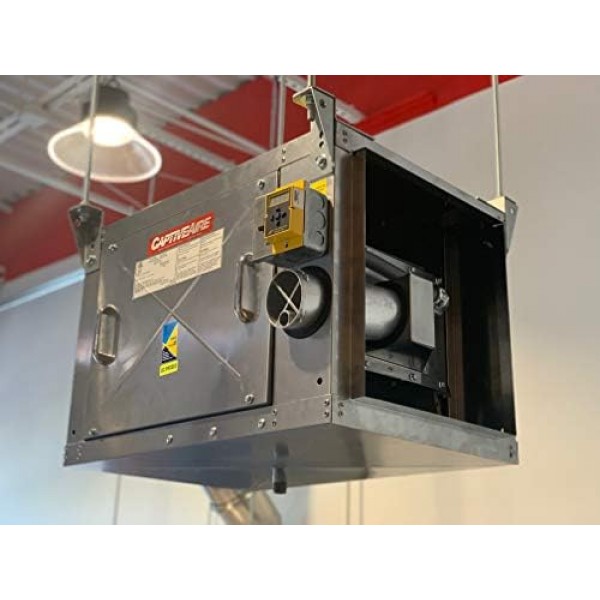

Square In-Line Duct Blowers are suitable for various applications. Commonly mounted indoors with both inlet and outlet ducts to supply or exhaust air. Square In-Line Duct Blowers are engineered to discharge air, fumes and other contaminants horizontally or vertically in a duct. Fan shall bear the AMCA certified ratings seal for sound and air performance.

Dishwasher Exhaust Fan Inline Exhaust Fan Commercial Exhaust Fan Restaurant Exhaust fans
Categories: Captiveaire Systems
