Availability: In Stock

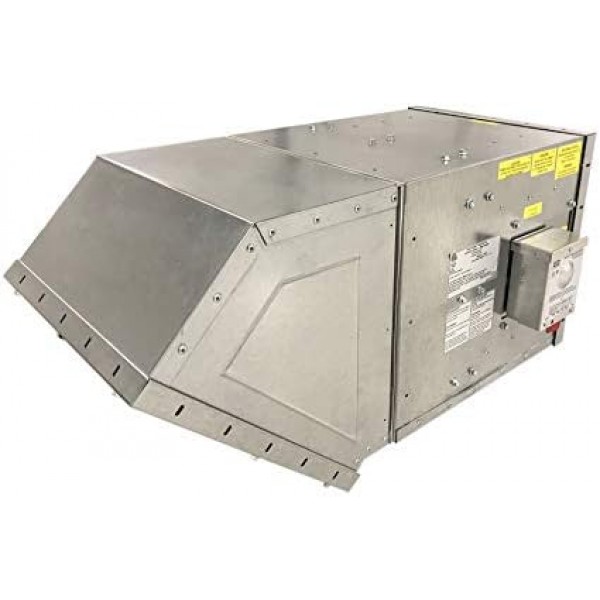

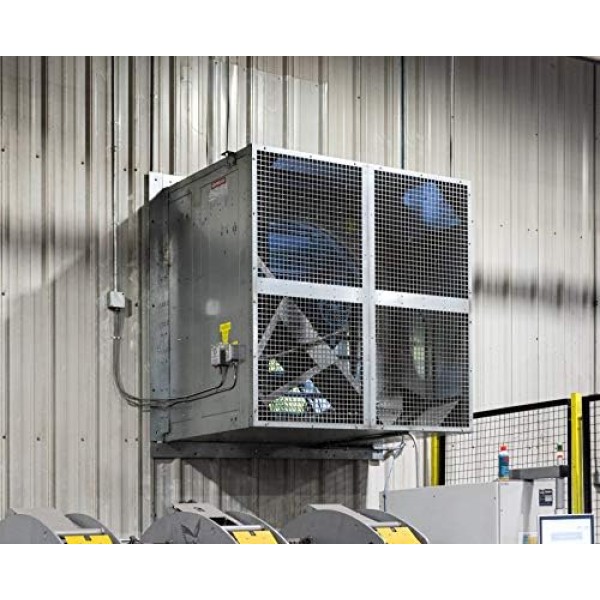

Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes. Includes Wall Box with Guard Screen, 1.0 HP 115 Volt Single Phase Motor, 2500-5000 CFM (WP-20)
Product Code: B07WHTYBYX
$1.00

Available Options

Ask About This Product
Brand CAPTIVE-AIRE
Color Aluminum
Power Source Corded Electric
Style Custom
Product Dimensions 21.13"D x 24.25"W x 24.25"H
Material Alloy Steel
Voltage 115 Volts
Item Weight 105 Pounds
Specification Met OSHA
See more

About this item

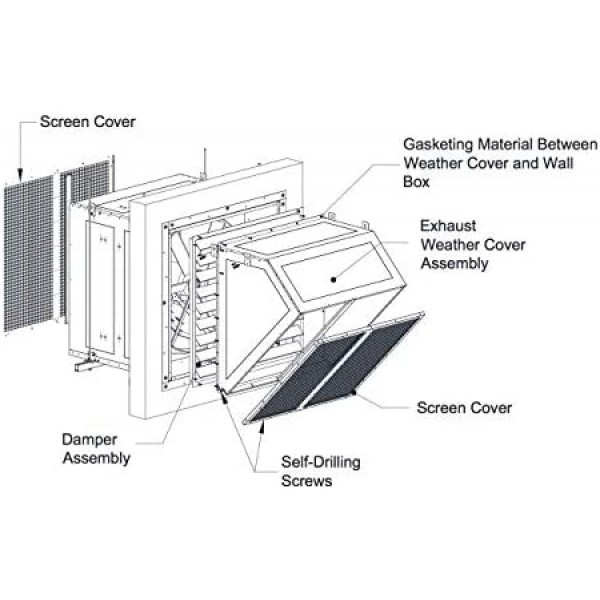

  • 20" Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes. Includes Wall Box with Guard Screen.
  • 24.25" high x 24.25" wide x 21.125" deep Fan Dimension/ 105 LBs/ 2500-5000 CFM/ 1.0 HP, 1 Phs, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)

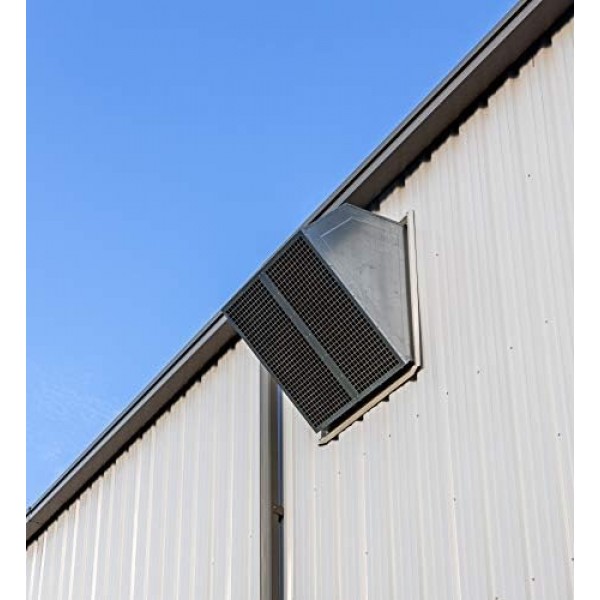

  • Optional Weather Hood Assembly and Wall Collar are included.

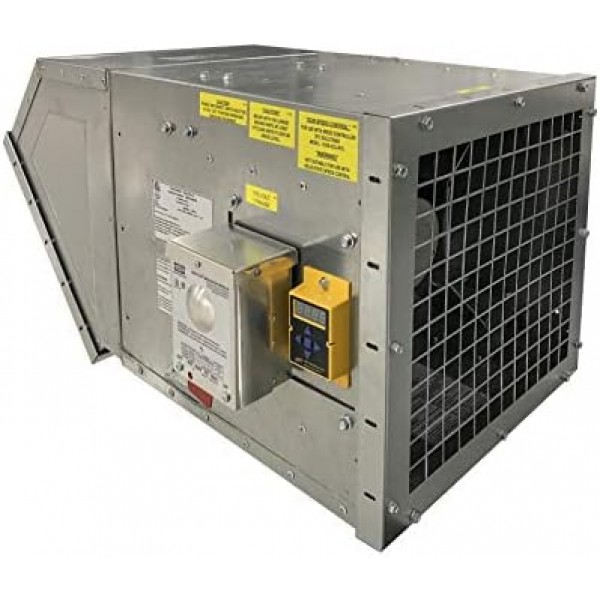

  • Construction features include G90 steel housing, mounted disconnect switch, mounted variable speed controller, OSHA rear guard, and dynamically balanced steel propellers.
  • As all fans are custom built, no returns or exchanges are accepted.

Product Description

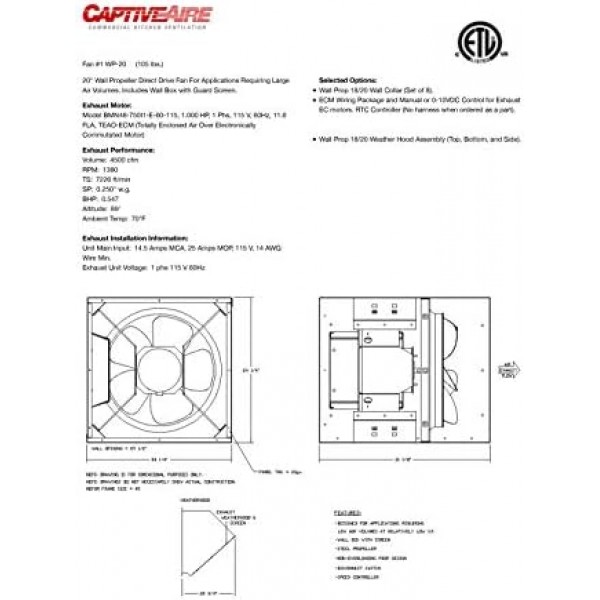

20" Wall Propeller Direct Drive Fan For Applications Requiring Large Air Volumes. Includes Wall Box with Guard Screen. 24.25" high x 24.25" wide x 21.125" deep Fan Dimension/ 105 LBs/ 2500-5000 CFM/ 1.0 HP, 1 Phs, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Optional Weather Hood Assembly and Wall Collar are included. Construction features include G90 steel housing, mounted disconnect switch, mounted variable speed controller, OSHA rear guard, and dynamically balanced steel propellers.
