Availability: In Stock

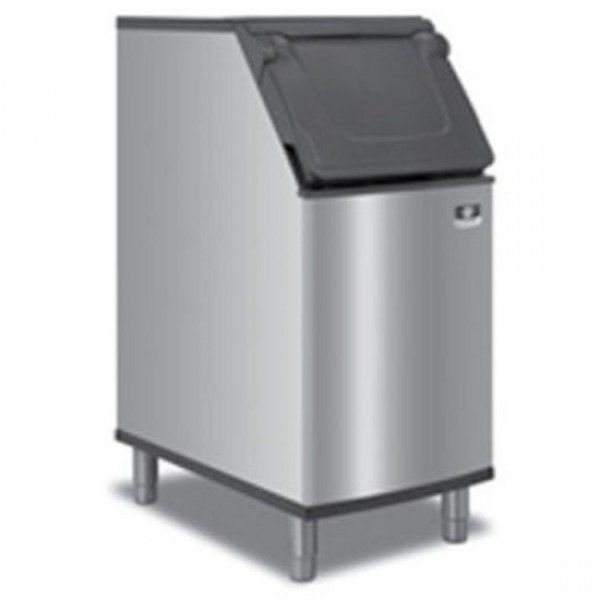

Manitowoc D420 22" 383 lb. Ice Bin with Side-Hinged Front-Opening Door - 12.9 Cu. Ft.
Product Code: D420
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product

Manitowoc ice offers two bin styles. The D-bins are (LIFO) ice last in is the ice first scooped out and LB-Bins are (FIFO) ice first in is the ice first scooped out.


With it's easy to clean stainless finish, DuraTechTM wins hands-down when compared to the industry standard Stainless 304. DuraTech exteriors are made up of a unique alloy combination providing aesthetic appeal with superior strength and durability.

Easy to Clean

DuraTech has a hard clear-coat layer on top of the aluminum alloy which reduces fingerprints and provides scratch protection. The clear-coat surface also makes it easier and faster to wipe clean. Stainless steel grain surfaces can trap contaminants and require additional effort to clean compared to DuraTech.

Cleaning Chemical Durability

DuraTech has been tested successfully according to ASTM D1308 (24 hour wet test) with stainless steel cleaners, chlorine bleach and other commonly available cleaners. The surface was also tested successfully with Manitowoc Cleaner & Sanitizer.

Looks Better Longer

Bins are typically kept longer than ice making heads. Bins used for 20+ years are not uncommon, but no matter how long they are used, they will continue to look good despite the environment.Superior Corrosion Resistance.

D Bin Features
  • New Sanitary Scoop - Ergonomic NSF approved sanitary ice scoop included with each bin. Built-in knuckle and thumb guard. Unique molded retaining lip allows maximum scooping every time. Per scoop capacity approximately 5.3/ lbs (2.4 kg)
  • Scoop Holder - options New built-in scoop holder, keeps the ice scoop handle above the ice, or purchases the optional NSF approved External Scoop Holder Kit # K00461.
  • New Door design - Clever built in side grips allow you to lift the bin door from anywhere you are standing (left, right or center) even when you have just one hand free.
  • Foamed Insulated Door - Insulates the ice bin, reduces sweat on the door, helps keep ice lasting longer.
  • Stay up door - Unique cammed bin door self-latch keeps the door in the open position and keeps the employee safe when scooping ice.
  • Ergonomic Door design - Door is angled 53 degrees to allow for easier access to the ice in the bin especially when scooping from the bottom.
  • Duratech Metal Finish - Manitowoc exterior material has better corrosion resistance than stainless steel, is smudge resistant and easy to keep clean.
  • New Bin liner Polyurethane Artic Blue bin liner accentuates the crisp clear ice from a Manitowoc Ice Machine.
  • 383 lbs. Storage Capacity
  • Ergonomic NSF Approved Sanitary Ice Scoop
  • Side-Hinged Front-Opening Door
  • 22"W x 34"D x 50"H
  • Side Grips
3 Year Parts & Labor
Approval AHRI, NSF
Condition New
Depth (in.) 34
Exterior Material Duratech
Height (in.) 50
Interior Material Plastic
Length (in.) 22.00
Manufacturer Manitowoc
SKU D420
